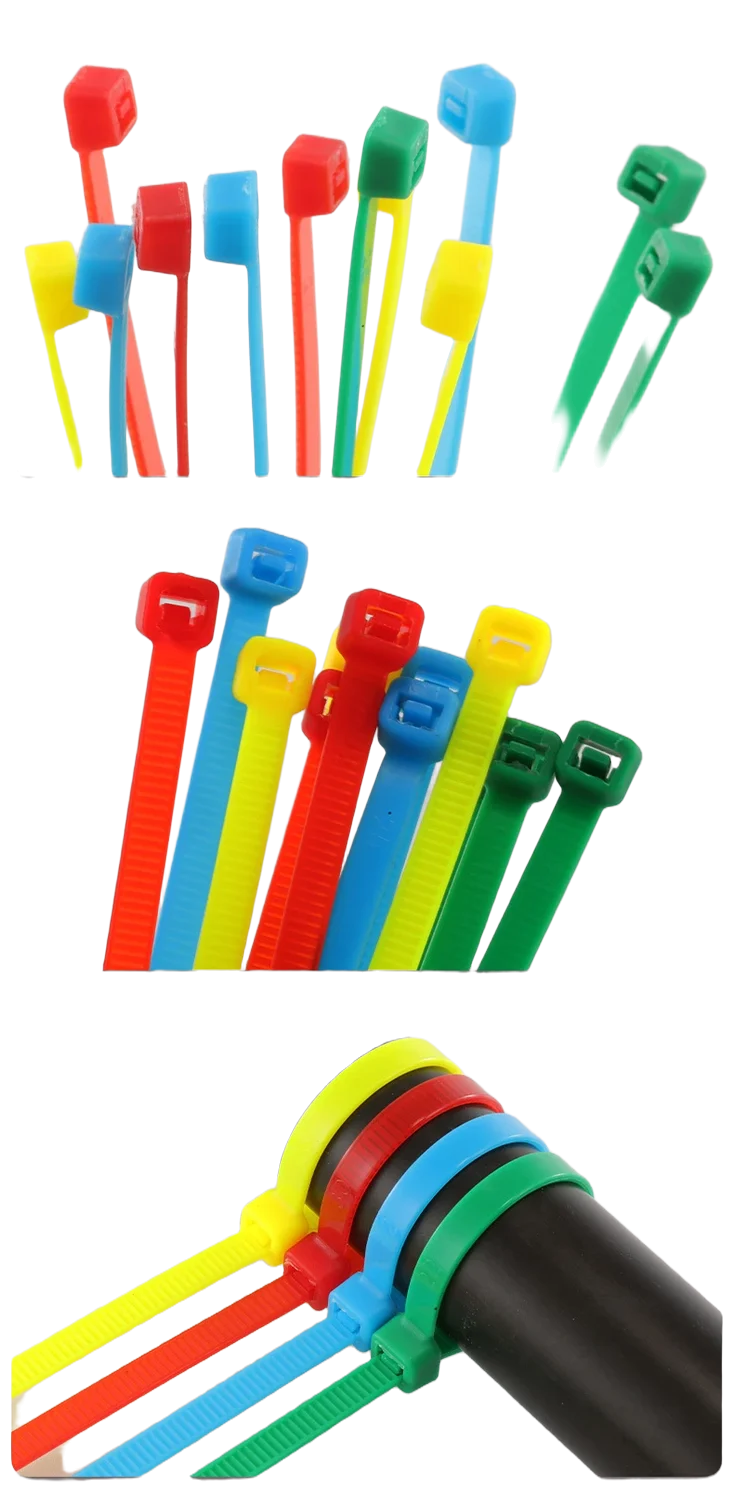

NF product photographs from the company website and catalog · NF catalog, page 15
Industrial cable ties
Nylon Cable Ties
Self-locking PA66 cable ties for organized wire bundles and general fastening.
- Material
- PA66
- Catalog sizes, width × length
- 2.3 × 60 to 10 × 800 mm
- Options
- Size, color and packaging by request
SPECIFY THE RIGHT PART
Details that make
the difference.
Electronic assemblies, appliances and general cable management.
Confirm the selected dimensions, grade, test requirements and packaging in your quotation.
| Width × length (mm) | Catalog loop strength | Max. bundle (mm) | Pieces / bag |
|---|---|---|---|
| 2.3 × 60 | 5 kg | 11 | 1000 |
| 2.5 × 100 | 8.1 kg | 22 | 1000 |
| 3.6 × 200 | 18.2 kg | 53 | 500 |
| 4.8 × 300 | 22.2 kg | 76 | 500 |
| 7.6 × 250 | 45 kg | 65 | 200 |
| 10 × 800 | 800 N | 230 | 100 |
Source: NF product catalog, page 15. Strength values retain the units printed in the source.
What to confirm before ordering
- Measure the finished bundle diameter before choosing a length.
- Select width and loop tensile strength together. The catalog uses kg and N; compare values in the same unit.
- Share the operating environment before requesting a material grade.
MAKE IT YOUR SPECIFICATION
Discuss your
supply requirements.
Send a drawing, reference sample or existing part specification. We will review the requested configuration and confirm availability, sample arrangements, minimum order quantity and lead time in the quotation.
Custom manufacturing process ↗PROCUREMENT QUESTIONS
Before you quote.
How do tie length and bundle diameter differ?
Length is the full strap dimension; bundle diameter is the size of the assembled cable group. Allow room for the strap to pass through the head and leave an installation tail. Use the maximum bundle diameter for the selected catalog row, then check a sample on the actual bundle.
Can I compare every strength figure directly?
Keep the original unit and test method with each figure. The NF catalog uses kg for many rows and N for the 10 × 800 mm entry. A loop-strength number does not establish the retention of a separate mount or the suitability of the cable jacket.
Does PA66 identify an outdoor or heat-resistant grade?
PA66 identifies the material family. It does not establish a UV, temperature or flame rating. State exposure conditions and request documentation for the specific quoted material and part.
What are the MOQ and lead time?
These depend on the selected configuration and quantity. NF confirms the applicable minimum order, sample arrangements and production timing in the quotation.
