Cable protection & accessories
Spiral Cable Wrap

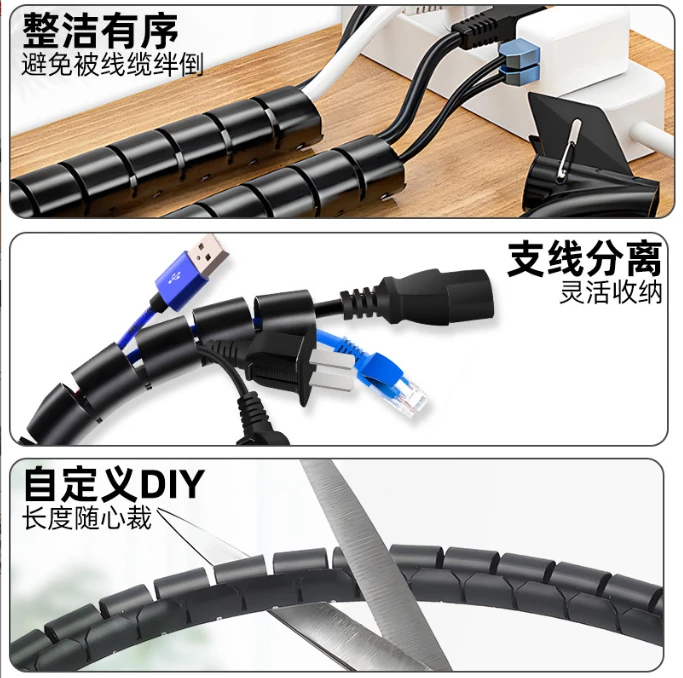

Spiral PE wrapping for grouping cables while allowing branch-out along the harness.
- Material
- PE

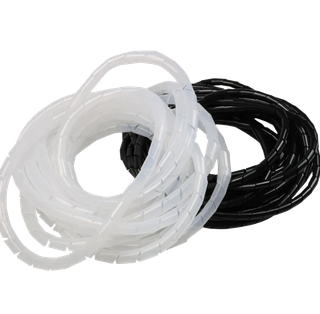

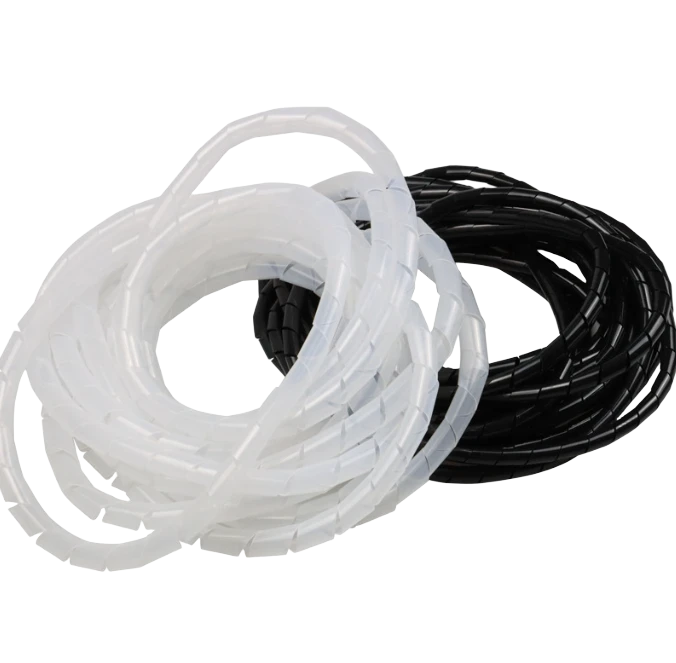

- Colors shown
- Black and white
- Selection inputs
- Inner diameter, wall thickness and bundle diameter
SPECIFY THE RIGHT PART
Details that make
the difference.
Automotive, computer, television and equipment cable bundles.
Confirm the selected dimensions, grade, test requirements and packaging in your quotation.
What to confirm before ordering
- Measure the bundle and any branch-out points.
- Specify inner diameter and required wall thickness.
- Share movement and abrasion conditions for product selection.
MAKE IT YOUR SPECIFICATION
Discuss your
supply requirements.
Send a drawing, reference sample or existing part specification. We will review the requested configuration and confirm availability, sample arrangements, minimum order quantity and lead time in the quotation.
Custom manufacturing process ↗PROCUREMENT QUESTIONS
Before you quote.
How does spiral wrap differ from closed tubing?
Spiral wrap follows the cable group with openings along the spiral, allowing branches to be considered during routing. Closed tubing surrounds a route continuously. Choose around installation sequence, access and the actual bundle shape.
Which dimensions should I specify?
Provide the intended bundle range, wrap diameter, wall or section requirements, length and color. Review the selected catalog size with a sample on the finished cable bundle, including bends and branch points.
Does PE identify an electrical or temperature rating?
No. PE is a material description. Any insulation, temperature, flame or application requirement needs separate confirmation for the specific product and operating conditions.
What are the MOQ and lead time?
These depend on the selected configuration and quantity. NF confirms the applicable minimum order, sample arrangements and production timing in the quotation.
