Cable protection & accessories

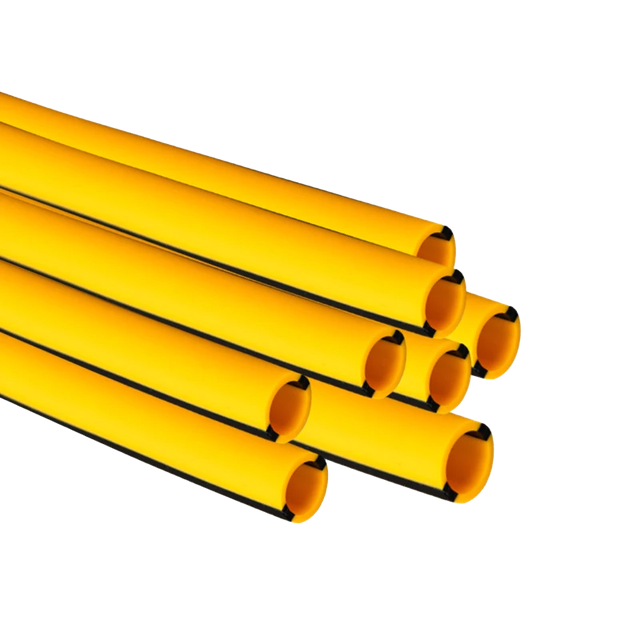

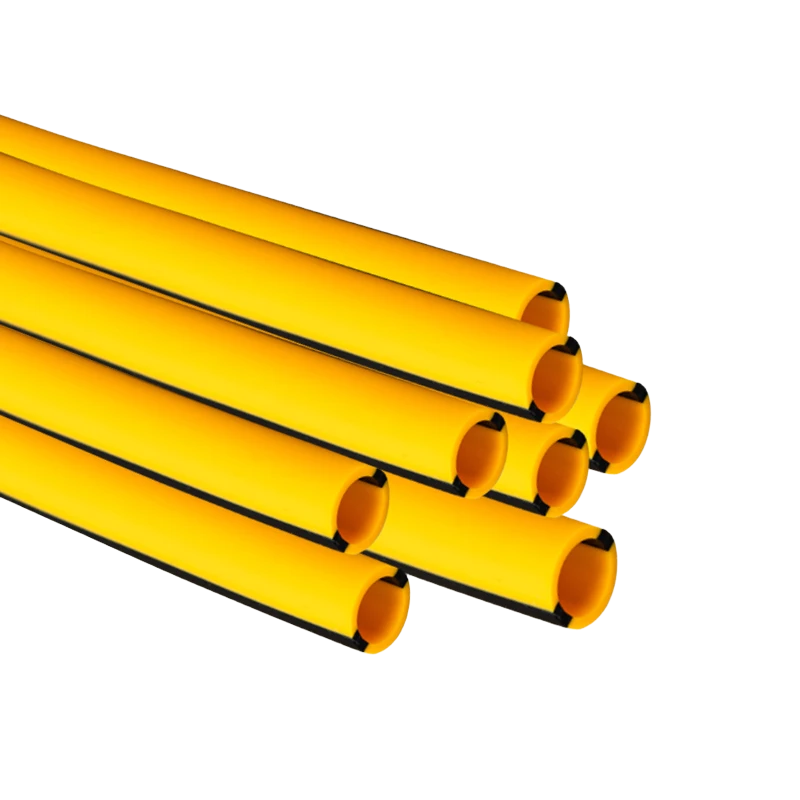

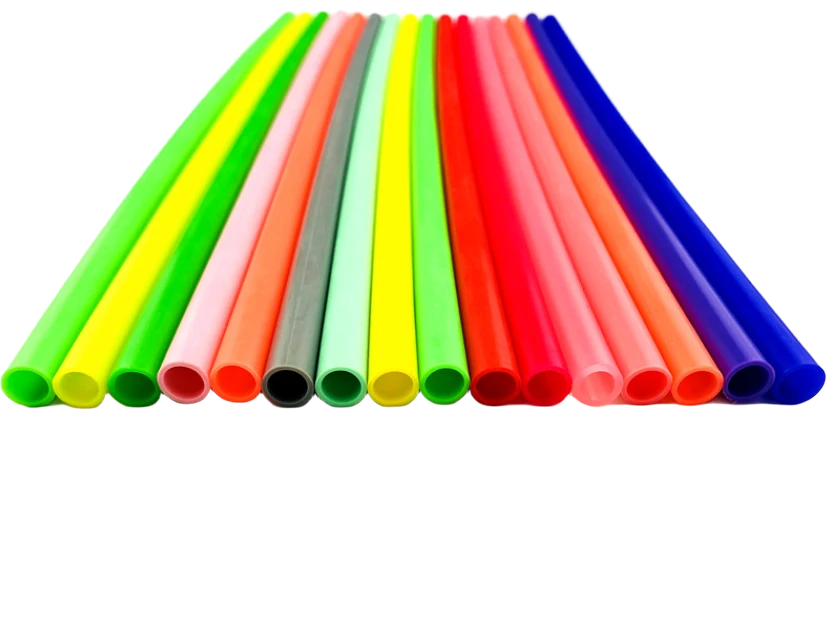

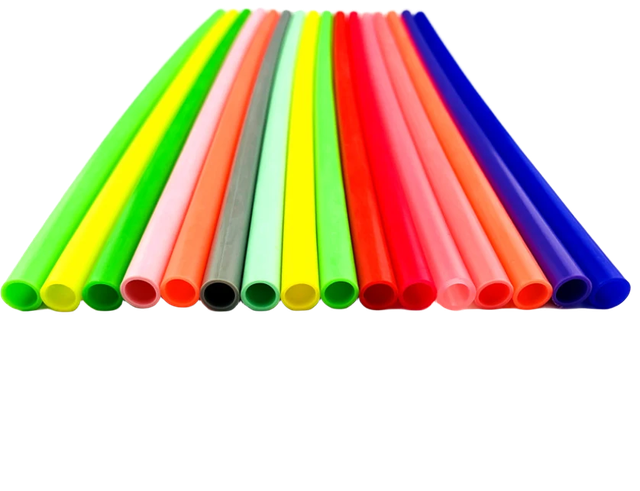

Silicone Tubing
Flexible silicone tubing for customer-specified component and assembly requirements.
- Material
- Silicone
- Sizing inputs
- Inner diameter, outer diameter and wall thickness
- Grade requirements
- Confirm for the intended application
PRODUCT DETAILS
Construction, formats and specifications.
Review the selected silicone tubing configuration before requesting a sample or quotation.
- Material
- Silicone
- Construction options
- Round tubing and custom extrusion profiles
- Length
- To specification
| Inner diameter (mm) | Outer diameter (mm) | Listed wall (mm) | Length |
|---|---|---|---|
| 9 | 10 | 0.5 | To specification |
| 10 | 11 | 0.5 | To specification |
| 8 | 10 | 1 | To specification |
| 10.5 | 12 | 0.75 | To specification |
| 10 | 12 | 1 | To specification |
| 14 | 16 | 1 | To specification |
| 13.5 | 15.5 | 1 | To specification |
| 13 | 15 | 1 | To specification |
| 15 | 17 | 1 | To specification |
| 6 | 10 | 2 | To specification |
| 16 | 18 | 1 | To specification |
| 18 | 20 | 1 | To specification |
| 9.6 | 10.5 | 0.45 | To specification |
| 20.2 | 21.5 | 0.65 | To specification |
| 12 | 13 | 0.5 | To specification |
| 14 | 15.6 | 0.8 | To specification |
| 23 | 25 | 1 | To specification |

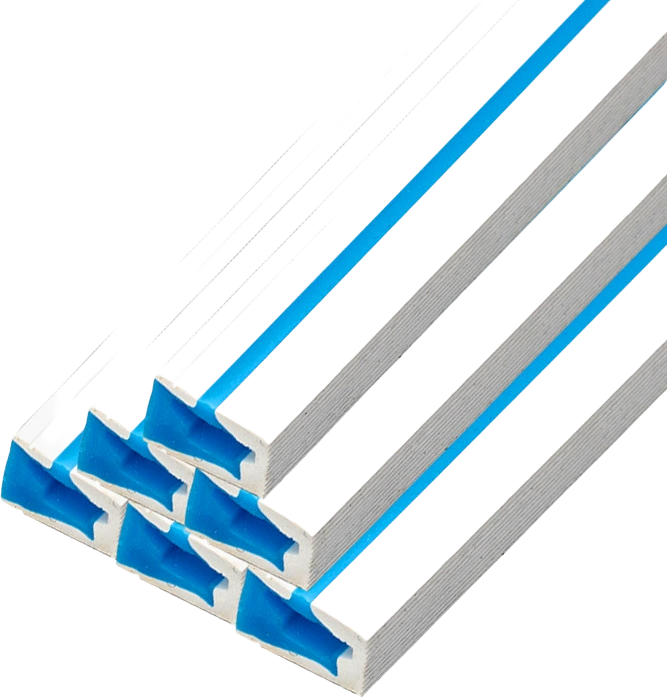

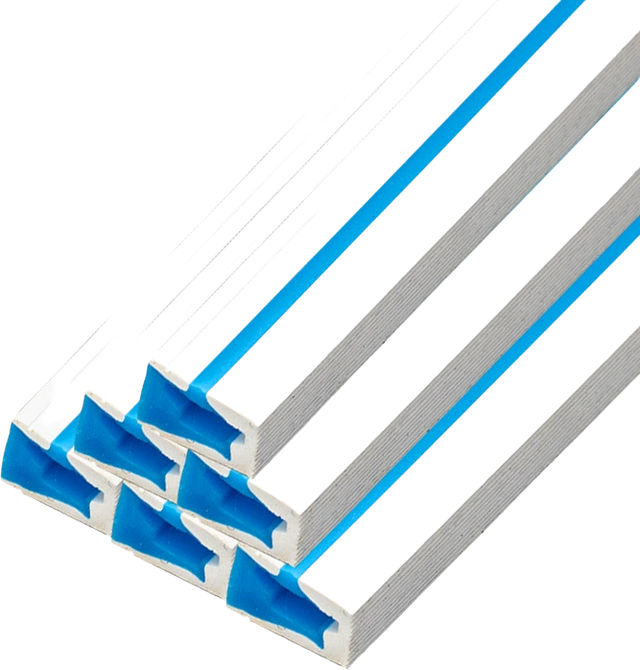

Source: NF 1688 listing 815307874276 ↗. Round-tube dimension examples from the supplier listing; profile photographs show a separate extrusion configuration. Confirm dimensions, tolerances and application requirements on your drawing.
FROM THE NF VIDEO LIBRARY
See the product and process.
Original footage supplied by NF. Select a video to play; sound is controlled by your player.
SPECIFY THE RIGHT PART
Details that make
the difference.
Tubing and assembly applications subject to grade confirmation.
Confirm the selected dimensions, grade, test requirements and packaging in your quotation.
What to confirm before ordering
- State the application and any required material documentation.
- Provide dimensions, tolerances, hardness and operating conditions.
- Temperature ratings and regulated-use claims require product-specific verification.
MAKE IT YOUR SPECIFICATION
Discuss your
supply requirements.
Send a drawing, reference sample or existing part specification. We will review the requested configuration and confirm availability, sample arrangements, minimum order quantity and lead time in the quotation.
Custom manufacturing process ↗PROCUREMENT QUESTIONS
Before you quote.
How are inner diameter, outer diameter and wall related?
For a round tube of uniform wall, nominal wall thickness is half the difference between outer and inner diameters. Specify which dimensions are controlled and their tolerances; an ID value alone does not define the full tube.
Do the listing temperature or application words establish a validated rating?
No. Use the selected listing as a configuration reference and request product-specific evidence for temperature, pressure or regulated-use requirements. This website does not assign a blanket food-contact, medical or pressure rating to the range.
What should I provide for a tubing sample?
Send inner and outer diameters, wall requirements, length, color, intended installation and exposure conditions. Identify any required material documents and acceptance checks so the quoted grade can be evaluated on the actual assembly.
What are the MOQ and lead time?
These depend on the selected configuration and quantity. NF confirms the applicable minimum order, sample arrangements and production timing in the quotation.
RELATED PRODUCTS
Continue your selection.
Spiral Cable Wrap
Spiral PE wrapping for grouping cables while allowing branch-out along the harness.
PVC Tubing
PVC tubing for routing and covering wires in appliance and electronic assemblies.
Silicone Rings
Silicone rings and loop accessories for specified fastening and component applications.
