Cable protection & accessories

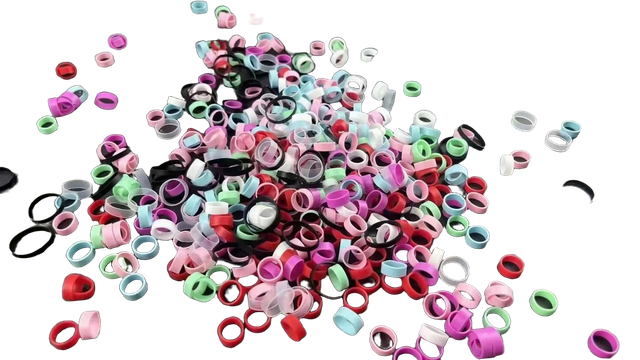

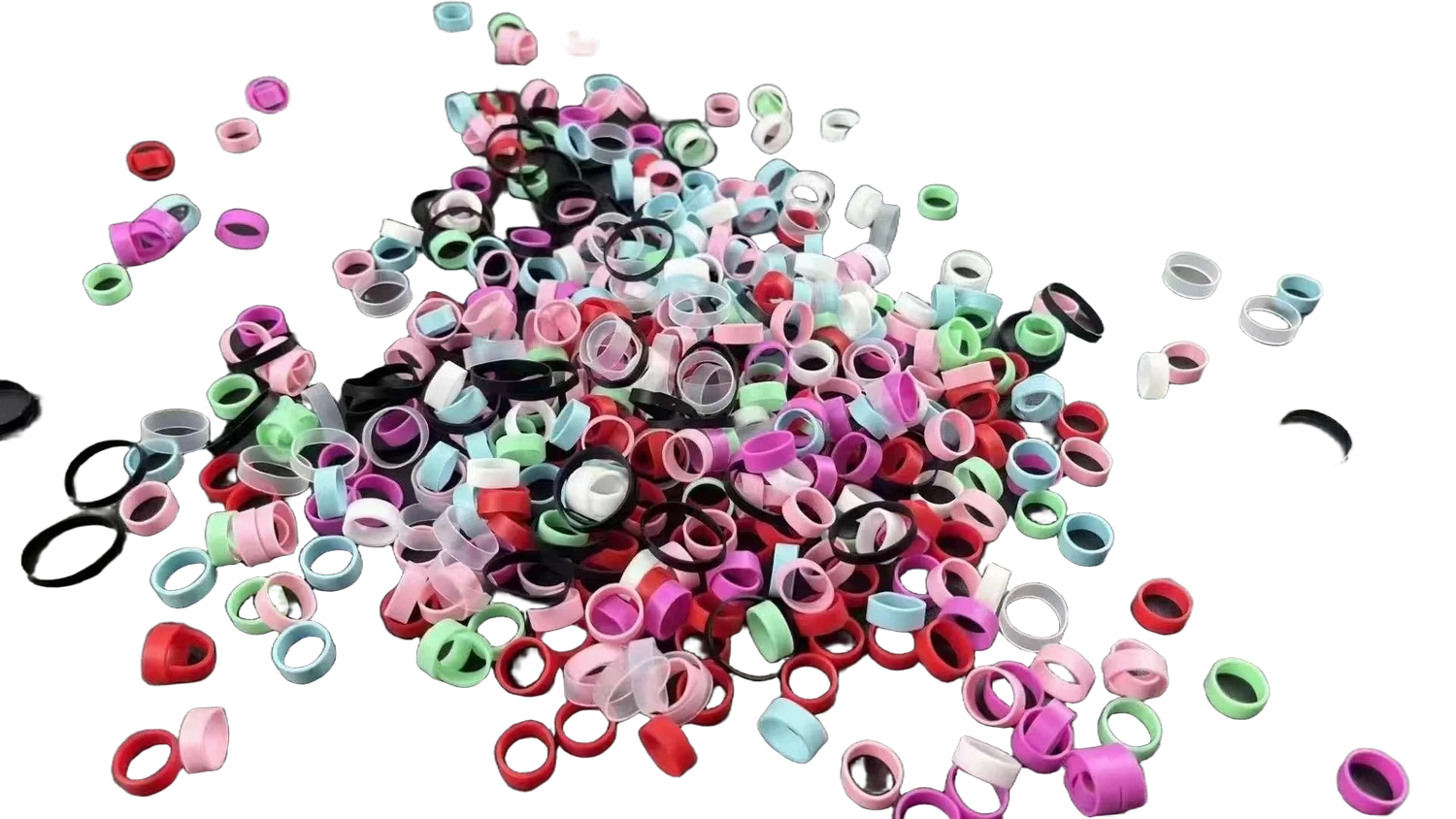

Silicone Rings
Silicone rings and loop accessories for specified fastening and component applications.
- Material
- Silicone
- Forms

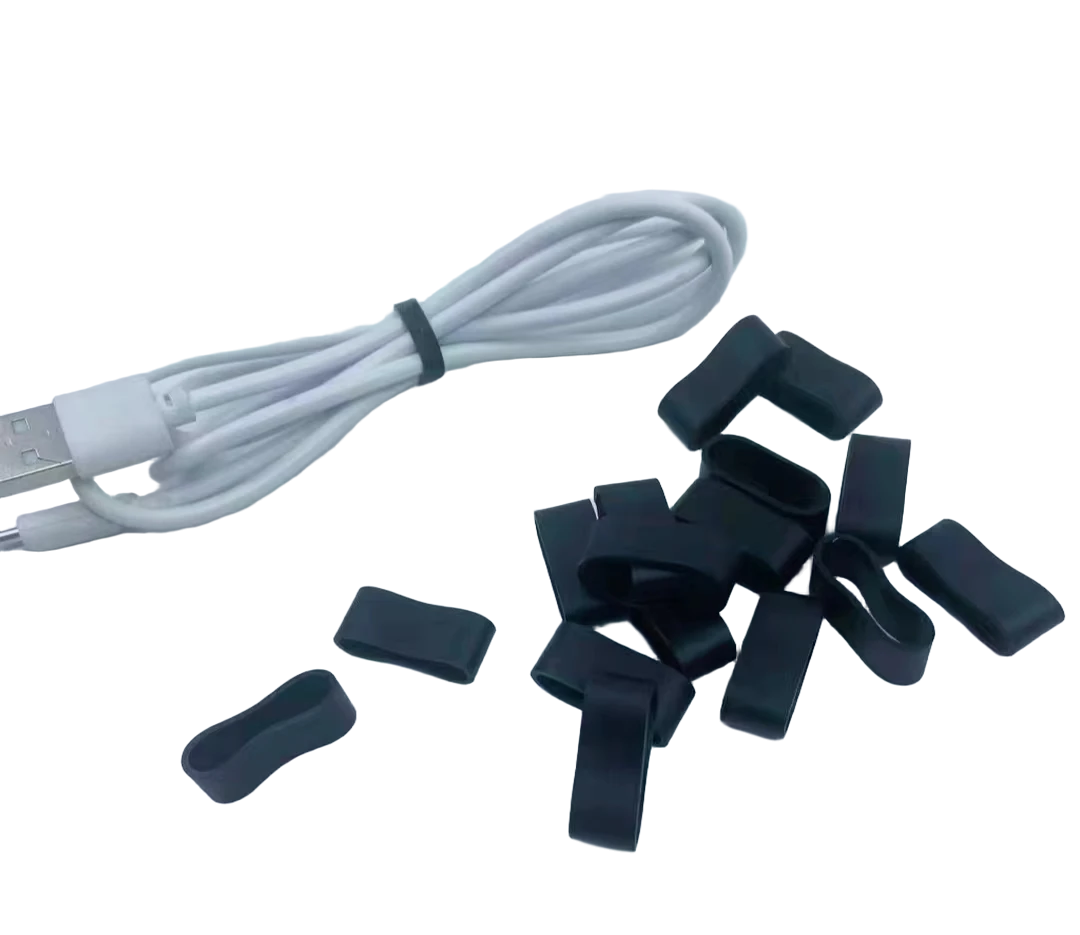

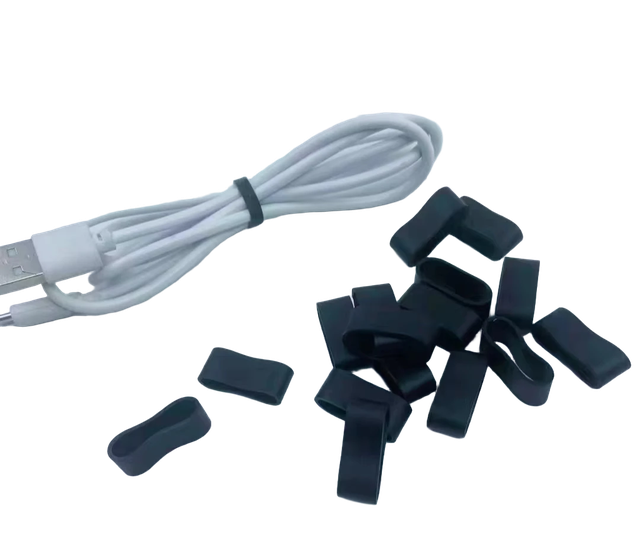

- Rings and molded loop accessories
- Sizing inputs
- Inner diameter and cross-section
PRODUCT DETAILS
Construction, formats and specifications.
Review the selected silicone rings configuration before requesting a sample or quotation.
- Material
- Silicone rubber
- Listed colors

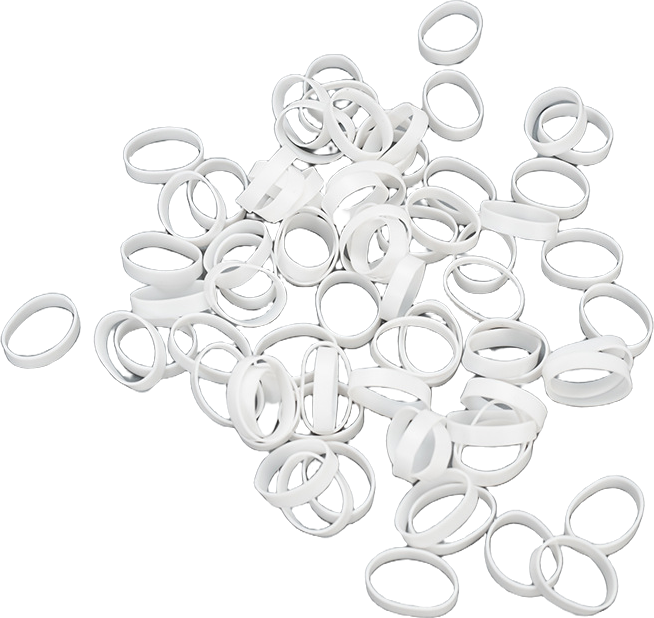

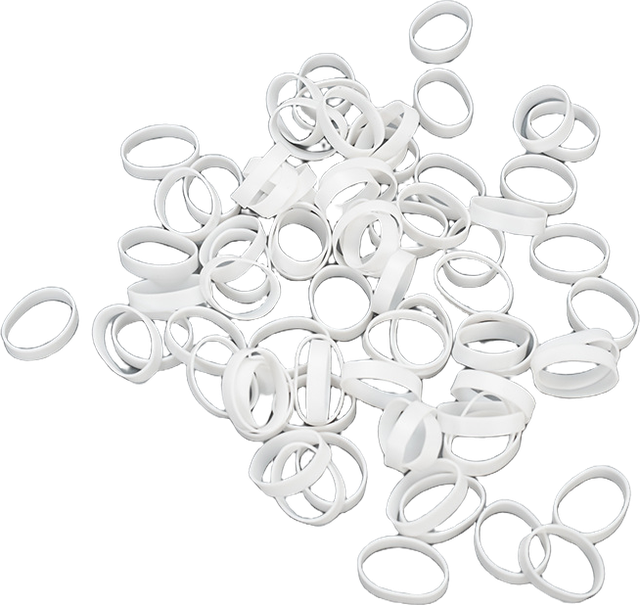

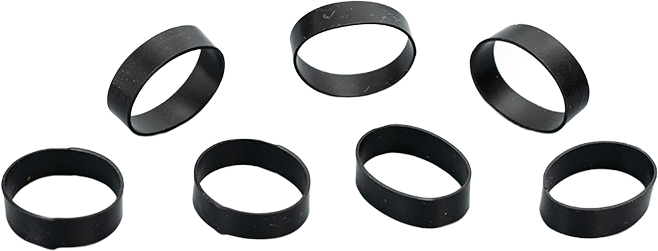

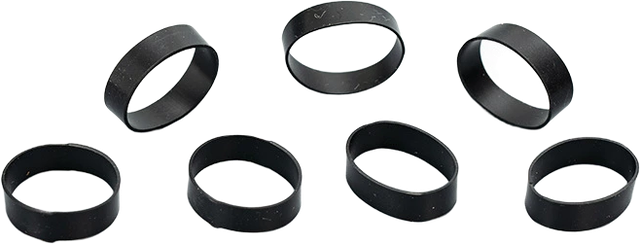

- Black and white
- Sizing inputs
- Inner diameter, outer diameter and axial height
| Inner diameter (mm) | Outer diameter (mm) |
|---|---|
| 9 | 10 |
| 10 | 11 |
| 8 | 10 |
| 11.5 | 13 |
| 10.5 | 12 |
| 10 | 12 |
| 14 | 16 |
| 14.5 | 16.3 |
| 13.5 | 15.5 |
| 13 | 15 |
| 15 | 17 |
| 6 | 10 |
| 16 | 18 |
| 18 | 20 |
| 21 | 23 |
| 9.6 | 10.5 |
| 20.2 | 21.5 |
| 12 | 13 |
| 14 | 15.6 |
| 23 | 25 |
| 28 | 30 |
| 12 | 14 |
Source: NF 1688 listing 823472166160 ↗. Listed dimensional examples only. Confirm the cross-section, axial height and fit on an approved drawing. Application-specific material and performance requirements are reviewed with your inquiry.
FROM THE NF VIDEO LIBRARY
See the product and process.
Original footage supplied by NF. Select a video to play; sound is controlled by your player.
SPECIFY THE RIGHT PART
Details that make
the difference.
Cable accessories and customer-defined assembly components.
Confirm the selected dimensions, grade, test requirements and packaging in your quotation.
What to confirm before ordering
- Send a drawing with inner diameter and cross-section.
- Specify hardness, color and the intended function.
- Confirm any material or application requirements before production.
MAKE IT YOUR SPECIFICATION
Discuss your
supply requirements.
Send a drawing, reference sample or existing part specification. We will review the requested configuration and confirm availability, sample arrangements, minimum order quantity and lead time in the quotation.
Custom manufacturing process ↗PROCUREMENT QUESTIONS
Before you quote.
Which dimensions define a silicone ring?
Provide a drawing with inner diameter, cross-section or wall dimensions and tolerances. Add hardness, color and the intended installation. A product photograph alone does not define the ring geometry.
Can these rings be treated as sealing O-rings?
Do not assume a sealing function from a ring shape. NF presents rings and molded loop accessories for specified component applications. Any sealing, pressure or fluid-contact function requires a corresponding design and product-specific review.
How should a loop accessory be approved?
Trial installation, fit, contact surfaces and removal on the actual component. Record the accepted geometry and material requirements. Describe loading, exposure and any required documents before the quotation is confirmed.
What are the MOQ and lead time?
These depend on the selected configuration and quantity. NF confirms the applicable minimum order, sample arrangements and production timing in the quotation.
